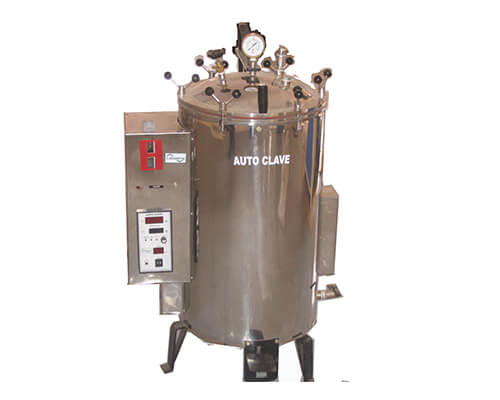

Vertical Model

AUTO CLAVE

Vertical Model

• Efficient sterilization.
• Electrically operated.
• Standard Vertical pattern.
• Working chamber (boiler) made of heavy gauge stainless steel SS 304 grade
• Outer chamber is made of Stainless steel SS 304 grade
• Lid is also made of heavy gauge stainless steel and accurately machined
• to form a steam tight joint with stainless steel ring also machined
• accurately for this purpose.
• Wing nuts made of Stainless steel to close the top lid.
• Silicon gasket (endless) will be provided along with the unit.
• Electrically heated by means of superior quality immersion heater.
• Pressure gauge, Steam release cock and safety steam valve fitted on the lid.
• Operating pressure 15 lbs per sq inch (psi) but the unit is tested up to
• 20 lbs per sq. inch
• Foot lifting arrangement to open the lid.
• The Unit shall be supplied with SS perforated basket.
• Stainless steel tripod stand to keep the basket inside the working chamber
• Overpressure cut off switch will be provided
• With built in Temperature controller cum Timer to set the Temperature
• and Time as you require.
• The unit provided with Plug and chord ready for use on 220/230 volts.
• Power supply 220-230 Volts AC single phase.
