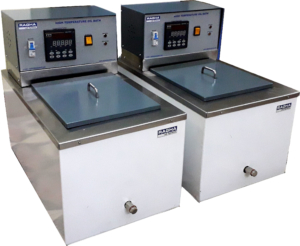

OIL BATH
RECTANGULAR MODELS
- Temperature Range 5°C above ambient to 300°C
- Temperature control Accuracy ± 0.1
- Double Walled Construction
- Inner Chamber made of Stainless Steel and
- Outer chamber made of Mild Steel duly powder coated surface.
- In between Inner and Outer walls sufficient glass wool insulation to minimize the loss of temperature.
- Heating by the aid of ISI quality oil immersion heaters.
- Motorized Stirring Assembly fitted at the top of chamber for smooth agitation and also to ensure the uniformity of temperature.
- Temperature is controlled by Microprocessor based Digital Temperature Indicator cum controller with pt 100 sensor.
| Model | Capacity | Clear working space | Temperature range |
| RHTB-1 | 17.5 liter | 20L x 25W x 25D cm | 5°C above ambient to 100°C |
| RHTB-2 | 17.5 liter | 20L x 25W x 25D cm | 5°C above ambient to 200°C |
| RHTB-3 | 17.5 liter | 20L x 25W x 25D cm | 5°C above ambient to 300°C |
Note: The unit can be supplied with Temperature controller having an accuracy of ± 0.01 °C at an extra cost.
