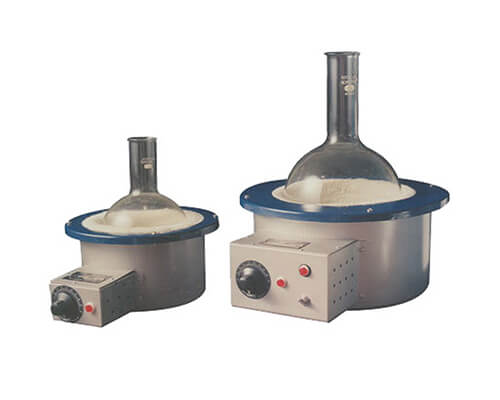

HEATING MANTLE

Lab Model

Suitable for Round as well as Flat bottom flasks):

A sturdy aluminium housing fitted with knitted glass fabric.

Heating surface suitable for various capacities of flasks.

Maximum surface temperature 450º C. Working under black heat conditions. Ideal laboratory heating device for distillation, digestion and extraction processes. Temperature is controlled by an energy regulator built in

type and fitted with neon indicating lamp showing the working of heater.

Available in sizes ranging from 100ml to 20 liter flask capacities.

Cat.No Capacity in ml Watts
RHM  50 50 ml 60 W
RHM 100 100 ml 100 W
RHM 250 250 ml 150 W
RHM 500 500 ml 200 W
RHM 1L 1000 ml 300 W
RHM 2 L 2000 ml 500 W
RHM 3 L 3000 ml 500 W
RHM 5 L 50000 ml 800 W
RHM 10 L 10000 ml 1000 W
RHM 20 L 20000 ml 1500 W
RHM 20 LH 20000 ml 2000 W

SUITABLE FOR BEAKERS

Cat.No Capacity Watts
RBM 100 100 ml 60 W
RBM 250 250 ml 150 W
RBM 500 500 ml 200 W
RBM 1000 1000 ml 300 W
RBM 2000 2000 ml 500 W
RBM 3000 3000 ml 500 W
RBM 5000 5000 ml 800 W

MULTI HEATING MANTLES (with built in regulator):

Specifications: Same as heating mantles but with conical type of heating element which will facilitate using various sizes of flasks.

Cat.No Capacity Watts
RLSM 1 100 500 ml 200 W
RLSM 2 250-1000 ml 300 W
RLSM 3 500-2000 ml 450 W
RLSM 4 500-3000 ml 500 W
RLSM 5 1000-5000 ml 800 W
RLSM 6 2000-10000 ml 1000 W
RLSM 7 3000-20000 ml 1500 W
