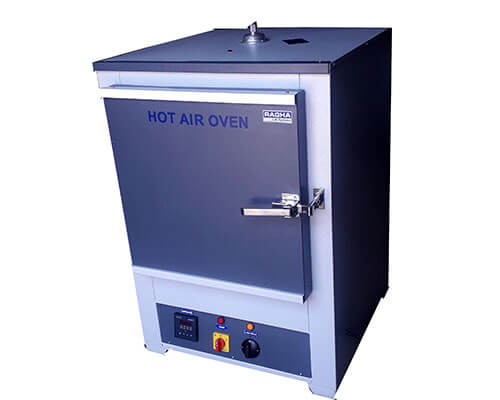

HOT AIR OVEN
Lab Model
- Double Walled Construction
- Inner Chamber made of Stainless Steel SS 304 Grade (Non Magnetic/Non corrosive)
- Outer chamber made of Mild steel duly powder coated surface/ Stainless steel.
- In between Inner and Outer walls sufficient insulation provided to minimize the loss of Temperature.
- Inner chamber fabricated with ribs for adjusting shelves to convenient height.
- Stainless Steel Removable type perforated trays will be supplied along with the unit.
- Main Door fitted with glass window to view the samples kept inside also with Ball & latch type lock.
- Ventilation provided at the top with adjustable chimney.
Temperature & Control:
- Temperature Range 5°C above ambient to 200°C
- Temperature control accuracy ± 0.5°C
- Temperature is controlled mP based Digital Temperature controller With pt 100 sensor having Displays for SET and PROCESS value.
- Control panel consists of MAINS switch, Temperature controller, Indicators for Mains and Heater operation, Temperature overshoot.
- Power supply 220-230 Volts AC Single phase power supply.
- The Unit provided with Plug and chord Indian standard.
| Model | Inner Working Dimensions | No.of Trays |
| RLHO- 1L
RLHO-1M RLHO-1GMP |
35H x 35w x 35D cm | 01 no |
| RLHO- 2L
RLHO-2M RLHO-2GMP |
45H x 45Wx 45D cm | 02 nos |
| RLHO- 3L
RLHO-3M RLHO-3GMP |
60H x 45W x 45D cm | 02 nos |
| RLHO- 4L
RLHO-4M RLHO-4GMP
|
90H x 60W x 60D cm | 02 nos |
Note: L , M and GMP denotes Laboratory, Memmert , GMP models respectively
Recommended Accessory: Air Circulation Fan Motor Assembly
To ensure temperature uniformity
