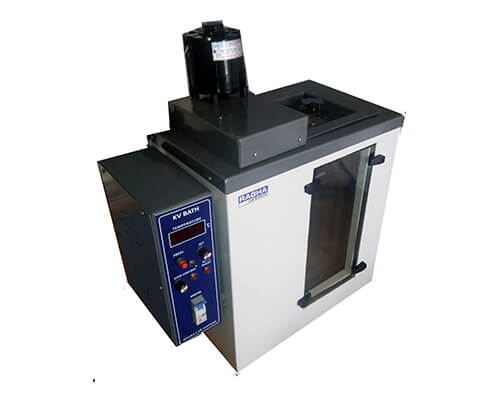

KINEMATIC VISCOSITY BATH

Above Ambient

Temperature range 5°C above ambient to  120°C

Temperature control Accuracy ± 0.1°C

Temperature is controlled mP based Digital Temperature controller with Pt 100 sensor.

Full visibility, high precision, meant primarily for viscosity determination, stainless steel tank, aluminium housing. Toughened glass windows, control of temperature by mP based Temperature controller with GAIN and BOOSTER Heaters.

Stirrer/pumps to provide gentle and thorough agitation and circulation of tank media.

The complete unit is powder coated in pleasing color.

Temperature is raised by heaters immersed from the top.

Model Type Working Space L x B x D Volume Suitable for Power
RVBS-1 Stirrer 100 x 180 x 350 mm 12 lit 2 VM 1.50 kw
RVBP-1 Pump 100 x 180 x 350 mm 12 lit 2 VM 1.50 kw
RVBS-2 Stirrer 270 x 220 x 350 mm 28 lit 4 VM 2.00 kw
RVBP-2 Pump 270 x 220 x 350 mm 28 lit 4 VM 2.00 kw
RVBP-3 Stirrer 370 x 260 x 350 mm 40 lit 8 VM 2.50 kw
RVBP-3 Pump 370 x 260 x 350 mm 40 lit 8 VM 2.50 kw

Note: The unit can be supplied with Temperature controller having

An accuracy of ± 0.01 °C at an extra cost.
