HOT PLATE
Circular/ Rectangular models
Hot Plates are widely used in various industries such as Automobile, Chemical, Pharmaceuticals and others.
Top made of Thick gauge Mild steel well machined & smooth cast iron Top (or)
Stainless steel, and grooved from bottom to circulate Spiral Heaters with porcelain beads.
Outer body made of Mild steel duly powder coated surface/Stainless Steel (GMP models)
Well insulated by Ceramic wool to minimize the temperature loss.
Temperature Range maximum up to 300°C
Three way Heat Selector switch to select the Heat level.
Temperature is controlled by an Energy regulator/Thermostat.
Power supply 220-230 Volts AC single phase.

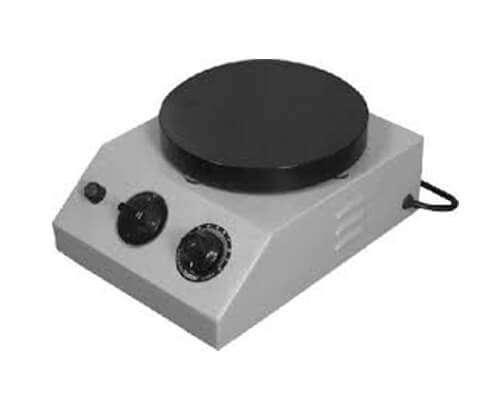

CIRCULAR MODELS
| Model | Dimensions (Top) | Rating |
| RHPC-1 | 20.5” Dia | 1.50 kw |
| RHPC-2 | 30.0 cm | 2.00 kw |

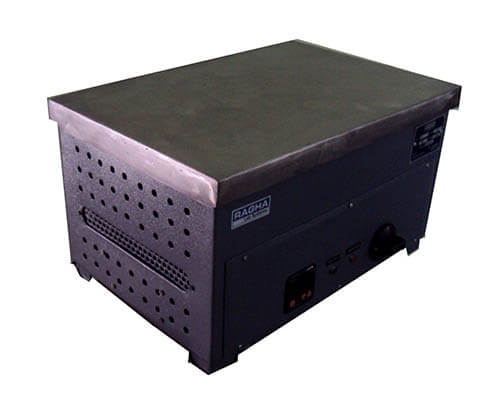

RECTANGULAR MODELS
| Model | Dimensions (Top)
Length x Breadth |
Rating |
| RHPR-1 | 25 x 40 cm | 1.25 kw |
| RHPR-2 | 30 x 45 cm | 2.0 kw |
| RHPR-3 | 45 x 60 cm | 3.0 kw |
Optional: Digital Temperature controller
(instead of Thermostat/ER control)
