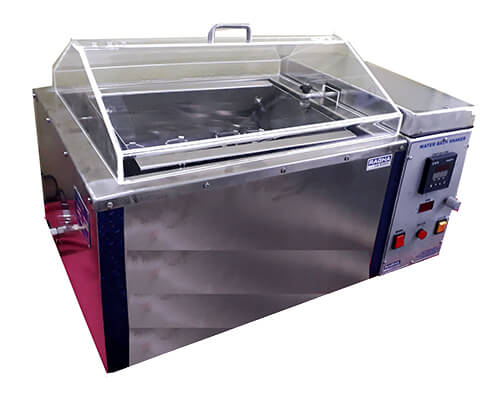

WATER BATH SHAKER

Horizontal Models

  • Double walled construction.
  • Inner chamber made of Stainless steel
  • Outer chamber made of Stainless steel.
  • In between Inner and Outer walls sufficient insulation provided to minimize the loss of temperature.
  • Temperature range 5°C above ambient to 80°C
  • Temperature control accuracy ± 0.5°C
  • Temperature is controlled by Microprocessor based
  • Digital Temperature controller with pt 100 sensor.
  • Heating by the aid of quality open air heater fitted inner Side.
  • Shaking speed is regulated by Speed regulator with Digital Display
  • Shaking Mechanism by the aid of PMDC motor ensure smooth Operation.
  • Built in Digital Timer also be provided to set the required Time for your application.
  • Pyramid type Lid made of Acrylic also be provided to view the samples kept inside.

Technical specifications:

Temperature range                         5°C above ambient to 80°C (or) 10°C to 60°C
Accuracy                                           ± 0.5°C
Shaking Mode                                 Horizontal /Orbital
Shaking Speed                                Horizontal 40 to 180 rpm(strokes)                                                                             Orbital 30 to 200 rpm
Shaking distance/Amplitude            20 mm
Shaking Capacity                            04 liter
Temperature, Timer,
Speed (RPM)                                   Digital Display

  Model   Temperature Range    Shaking Mode
RSHB-1H 5°C above ambient to 80°C    Horizontal
RSHB-2H 5°C above ambient to 80°C    Orbital
RSHB-1O 10°C to 60°C    Horizontal
RSHB-2O 10°C to 60°C    Orbital
