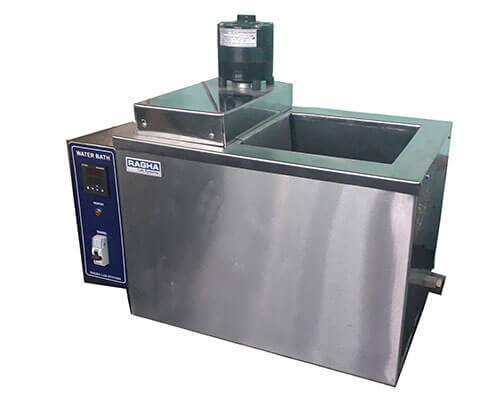

CONSTANT TEMP. BATH

  • Economically designed Constant Temperature Bath with Temperature range, Control and Uniformity.
  • Double walled construction.
  • Inner working chamber made of Stainless steel SS 304 grade and
  • Outer chamber Mild steel duly powder coated surface /Stainless steel.
  • Motorized Stirrer Assembly fitted at top for smooth agitation and also to ensure the uniformity of temperature throughout the chamber.
  • Bath media can be controlled at Temperature up to 90°C (With lid) and 60°C (Without Lid).
  • Temperature Range 5° C above ambient to 90°C (Without Refrigeration system)
  • Temperature Range 5° C to 90°C (With refrigeration system)
  • Temperature control accuracy 0.1°C and uniformity 0.2°C.
  • Heating by the aid of ISI quality immersion heaters are fitted.
  • Refrigeration system consists of hermetically sealed “Emerson” compressor, Condenser, Fan Motor, Drier and capillary tubing etc.
  • Different capacities are available.

   Model         Inner Tank Dimensions                 Capacity
RSCB-1

RSCB-1C

 100L x 180B x 350D mm 12 liter
RSCB-2

RSCB-2C

 270L x 220B x 350D mm 28 liter
RSCB-3

RSCB-3C

 37 0L x 260B x 350D mm 40 liter

Note : C denotes with refrigeration attachment Custom built models as per customer requirement,

Optional : mP based Digital Temperature controller with an Accuracy of 0.01° C
Stirrer cum Pump Assembly for external circulation.
