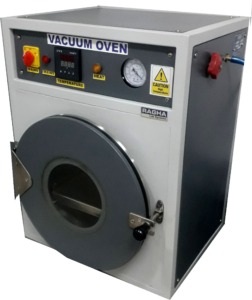

VACUUM OVEN

CIRCULAR MODEL

Vacuum ovens are widely applicable for Drying & Sterilization and widely used in the fields of Biochemistry, Pharmacy, Medicine, Agriculture & Scientific Research and Environment Protection.

  • Double walled construction.
  • Inner Working chamber made of Stainless Steel SS 304 grade and
  • Outer chamber made of Mild Steel duly powder coated surface.
  • In between Inner and Outer walls sufficient high grade glass wool insulation provided to minimize the loss of temperature.
  • Removable type Stainless Steel trays will be supplied along with the unit.
  • Main Door fitted with Toughened Glass window for viewing the samples kept inside.
  • Temperature range 50°C to 200°C
  • Temperature control accuracy ± 0.5 C
  • Maximum vacuum 760 mm hg.
  • Temperature is controlled by mP based Digital Temperature controller with pt 100
  • Sensor having displays for SET and PROCESS values.
  • The Unit fitted with vacuum gauge with regulator valve and Gas inert cock.
  • Power supply 220-230 Volts AC Single phase.

Model Capacity Inner Dimensions No.of Trays
RVOC-1 15 liter 250 mm Dia x 300 mm Depth 02 nos
RVOC-2 25 liter 300 mm Dia x 400 mm Depth 02 nos
