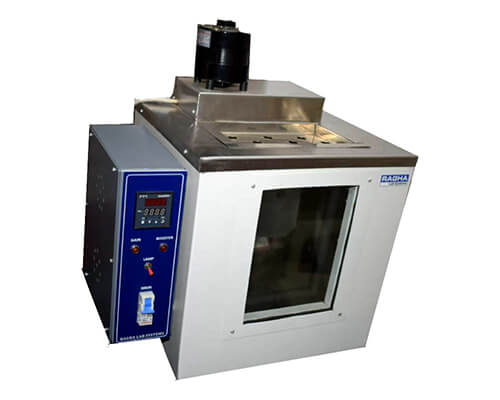

CALIBRATION LIQUID BATH
The Instrument facilitates for Calibration Or Testing of Thermometers,
Temperature Probes, Temperature Gauges etc.,
Double walled construction.
Inner Working chamber made of Stainless steel SS 304 grade
Outer chamber made of Mild Steel duly powder coated surface.
In between Inner and Outer walls sufficient insulation provided to
Minimize the temperature loss.
Temperature is controlled by mP based Digital Temperature controller with pt 100 sensor.
Temperature control accuracy ± 0.1°C
Resolution 0.1/ 0.01°C / Stability 0. 05°C
Inner working chamber size 100W x 100B x 250D mm
Capacity 10 liter. No. of Holes 03 nos
Display LED
Temperature control Showing SET & PROCESS values.
Refrigeration system consists of hermetically sealed “Emerson” compressor, Condenser Fan Motor, Capillary tubing drier etc., (Below Ambient Temperature)
Cooling Evaporator evenly placed inside the working chamber to bring down the temperature into below ambient condition effectively.
Motorized Stirring Assembly fitted on top for smooth agitation and also to ensure uniformity of temperature throughout the Bath.
Power supply – 220-230 Volts Ac single phase.
Accessories included :
Media Silicon oil (above Ambient Temperature)
IPA (below ambient Temperature)
Sensor Holder
Funnel (to fill the media)
Built in Stand with Finger clamp and Boss head
Documents provided: NABL calibration certificate for Temperature controller
Instruction Manual and Guarantee card.
| Model | Temperature Range | Resolution | Stability |
| RCAL-1
Table top |
50°C to 250°C (**) | 0.1 /0.01 | 0.2°C /0.05°C |
| RCAL-2
Floor type |
0 to 99.99°C | 0.1 / 0.01 | 0.2°C /0.05°C |
| RCAL-3
Floor Type |
-20°C to 50°C | 0.1 /0.01 | 0.2°C /0.05°C |
| RCAL-4
Floor type |
-40°C to Ambient | 0.1 / 0.01 | 0.2°C / 0.05°C |
| RCAL-5
Floor Type |
-80°C to Ambient | 0.1 / 0.01 | 0.2 / 0.05°C |
